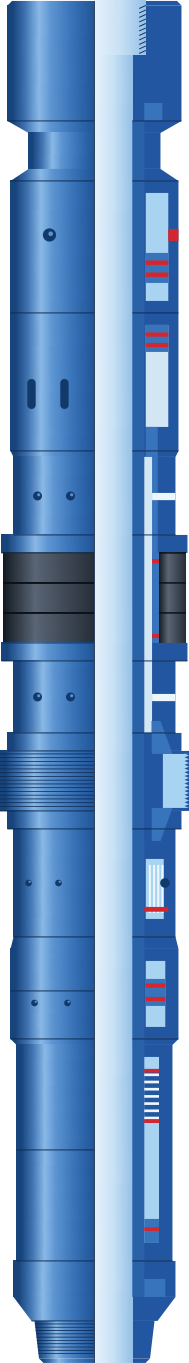

APL Super HPHT Packer

Name: APL Super HPHT Packer
Brand: WellCore Equipment

Annulus-pressure-set, straight-pull-release retrievable packer for HPHT testing

Back to packers

Description

The APL packer is a retrievable test packer that is set by annulus hydraulic pressure and released by a straight pull. It combines the run-and-retrieve convenience of a conventional retrievable packer with the sealing performance of a hydraulic permanent packer. A built-in sliding seal assembly compensates for string contraction and expansion and reduces the number of tools in the string. Especially suited to HPHT, deep and highly deviated wells. Available in 10K and 15K versions.

Operation

With the string on depth, annulus pressure breaks the rupture disc and hydrostatic pressure drives the setting mechanism down: the bypass closes, the two-way slips expand and the elements pack off, and the packer locks set. The insert mandrel then unlocks from the packer body and strokes freely in the telescopic housing. To release, pick up the string: the limit pin shears, the bypass opens, the elements relax and the slips retract.

Features

Set, unset and retrieved in a single trip
Rupture-disc setting by annulus pressure: no string manipulation, no ball drop
Few seal points once set give permanent-packer sealing reliability in HPHT tests
Built-in insert seal works as a slip joint / expansion joint, removing slip joints, jars, safety joints and drill collars from the string
Bypass across the elements while running and pulling reduces swabbing
High-strength cylindrical slips hold pressure from above and below and high tensile load
Subsea tree and guns positioned before setting; setting does not move the guns. Compatible with large-hole guns
Optional AP circulating valve below the packer for more effective well kill, especially in gas wells

Contingency release

If the packer does not release, an overpull of 101,160 lbf [450 kN] releases the insert mandrel, and the mandrel and string above it are pulled out. A dedicated APL retrieving tool is then run and latched into the tie-back fishing neck on top of the setting mechanism; the packer can be picked up and jarred. The retrieving tool is released from the packer by right-hand rotation of the string.

Specifications

Parameter	Specification
Casing size, in [mm]	7 [177.8]; 32–38 lb/ft
Working pressure, psi [MPa]	10,000 [70] \| 15,000 [105]
Temperature rating, °F [°C]	400 [204] \| 430 [220]
Bore ID, in [mm]	2.25 [57.2]
Service	H₂S service, NACE MR0175
Setting	Annulus pressure, rupture disc
Release	Straight pull (shear)
Stroke compensation	Built-in insert seal
Qualification	API 11D1, V3-H
Connection	3⅞ in CAS, box × pin

Technical specifications — 7-in, 15,000 psi, 430 °f, full H2S

Parameter	Room temperature	At temperature
Casing size, in [mm]	7 [177.8]: 32 lb/ft \| 35 lb/ft \| 38 lb/ft
Casing ID, in [mm]	5.907 [150.04] \| 5.817 [147.75] \| 5.733 [145.62]
Bore ID, in [mm]	2.25 [57.2]
Working pressure, psi [MPa]	15,000 [105]
Annulus pressure before setting (compr. yield), psi [MPa]	18,520 [127.7]	17,230 [118.8] at 450 °F [232 °C]
Annulus pressure after setting, psi [MPa]	Without AP circulating valve: annulus-to-tubing differential ≤ 15,000 [105]; up to 24,950 [172] with load-booster device. With AP circulating valve below packer: 23,000 [159]
Tubing pressure after setting, psi [MPa]	Without AP circulating valve: annulus-to-tubing differential ≤ 15,000 [105]. With AP circulating valve below packer: 23,000 [159]
Min. setting pressure (hydrostatic + applied), psi [MPa]	7,500 [52]
Max. setting pressure (hydrostatic + applied), psi [MPa]	15,000 [103.5]	13,788 [95] at 450 °F [232 °C]
Tensile yield after shear release, lbf [kN]	224,970 [1,000.7]	191,220 [850.6] at 450 °F [232 °C]
Tensile break after shear release, lbf [kN]	245,540 [1,092.2]	208,710 [928.4] at 450 °F [232 °C]
Insert mandrel assembly tensile yield, lbf [kN]	162,920 [724.7]	151,510 [674.0] at 450 °F [232 °C]
Shear-release force, lbf [kN]	101,950 ± 4,050 [453.5 ± 18]	95,090 ± 4,720 [423 ± 21] at 350 °F [177 °C]
Contingency insert-mandrel release, lbf [kN]	101,160 [450] overpull
Rated temperature range, °F [°C]	195 to 430 [90 to 220]; maximum 430 [220]
Service	Full H₂S at all temperatures, meets NACE MR0175
Connection	3⅞ in CAS, box × pin
Qualification	API 11D1, V3-H
AP circulating valve below packer	Optional

Packer length and stroke

Configuration	Telescopic housing, ft	Upper spacer A, ft [mm]	Lower spacer B, ft [mm]	Extension stroke, ft [mm]	Contraction stroke, ft [mm]
20-0-10	20	0 [0]	10 [3,048]	4.00 [1,219.5]	14.87 [4,531]
20-2-8	20	2 [609.6]	8 [2,438.4]	6.00 [1,829.1]	12.87 [3,921.4]
20-4-6	20	4 [1,219.2]	6 [1,828.8]	8.00 [2,438.7]	10.87 [3,311.8]
20-6-4	20	6 [1,828.8]	4 [1,219.2]	10.00 [3,048.3]	8.87 [2,702.2]
25-0-16	25	0 [0]	16 [4,876.8]	4.00 [1,219.5]	20.87 [6,359.8]
25-2-14	25	2 [609.6]	14 [4,267.2]	6.00 [1,829.1]	18.87 [5,750.2]
25-4-12	25	4 [1,219.2]	12 [3,657.6]	8.00 [2,438.7]	16.87 [5,140.6]
25-6-10	25	6 [1,828.8]	10 [3,048]	10.00 [3,048.3]	14.87 [4,531]
25-8-8	25	8 [2,438.4]	8 [2,438.4]	12.00 [3,657.9]	12.87 [3,921.4]
30-0-20	30	0 [0]	20 [6,096]	4.00 [1,219.5]	24.87 [7,579]
30-2-18	30	2 [609.6]	18 [5,486.4]	6.00 [1,829.1]	22.87 [6,969.4]
30-4-16	30	4 [1,219.2]	16 [4,876.8]	8.00 [2,438.7]	20.87 [6,359.8]
30-6-14	30	6 [1,828.8]	14 [4,267.2]	10.00 [3,048.3]	18.87 [5,750.2]
30-8-12	30	8 [2,438.4]	12 [3,657.6]	12.00 [3,657.9]	16.87 [5,140.6]
40-0-30	40	0 [0]	30 [9,144]	4.00 [1,219.5]	34.87 [10,627]
40-2-28	40	2 [609.6]	28 [8,534.4]	6.00 [1,829.1]	32.87 [10,017.4]
40-4-26	40	4 [1,219.2]	26 [7,924.8]	8.00 [2,438.7]	30.87 [9,407.8]
40-6-24	40	6 [1,828.8]	24 [7,315.2]	10.00 [3,048.3]	28.87 [8,798.2]
40-8-22	40	8 [2,438.4]	22 [6,705.6]	12.00 [3,657.9]	26.87 [8,188.6]

Configuration = telescopic housing length – upper spacer A – lower spacer B (ft). Select the configuration to suit the expected string expansion and contraction for the job.
