Completion Tools

Permanent and retrievable packer systems, sealing assemblies and completion valves.

HNR-T Series Permanent Production Packer

Cased-hole hydraulic-set permanent packer system with release and re-attach

Anchor Sealing Assembly

Releasable and re-attachable connection between tubing and permanent packer

Tool sizes: 2.939, 4, 4.3, 5, 5.5, 7 in Working pressure: 10,000 psi

HNR-T Hookwall Production Packer

Hydraulic-set permanent hookwall packer with release and re-attach

Casing sizes: 5, 5½, 6⅝, 7 in casing Working pressure: 10,000 psi

Milling Extension Sub & X-Over

Fishing neck below the packer and connection crossover

Setting Ballseat

Plugs the tubing so that pressure can be applied to set a hydraulic packer

Tool sizes: 2⅞, 3½ in Working pressure: 10,000 psi

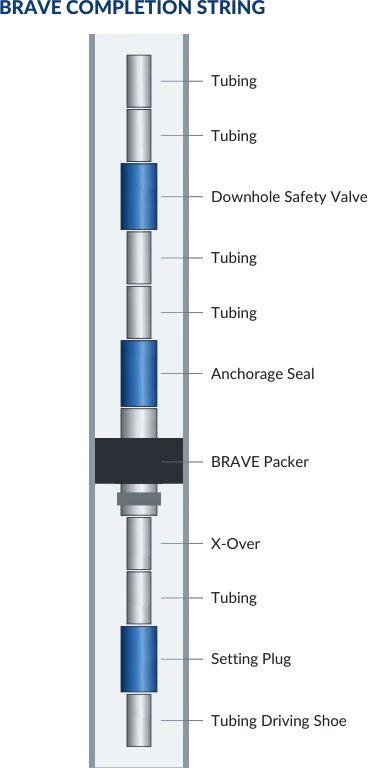

BRAVE Series Gas Permanent Production Packer

Hydraulic-set permanent packer system for inert-gas-filled wellbores

BRAVE Gas Hookwall Production Packer

Permanent completion packer for cased holes filled with inert gas

Casing sizes: 7 in, 32–35 lb/ft Working pressure: 5,000 psi

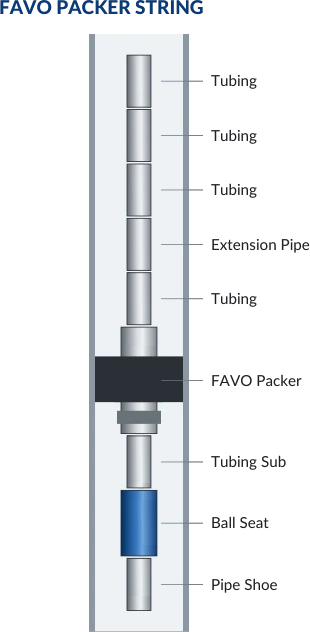

FAVO Series Retrievable Packer

Hydraulic-set retrievable packer system for cased holes

Extension Tube

Large-bore slip tube that compensates for string length changes during stimulation

Tool sizes: 4¼, 5 in Working pressure: 10,000, 15,000 psi

FAVO Hydraulic Packer

Hydraulic-set retrievable packer for deviated and horizontal wells

Casing sizes: 7 in, 29–35 lb/ft, 7⅝ in, 24 lb/ft Working pressure: 10,000 psi

Releasable & Re-Attachable Downhole Open/Shut-Off Valve

Closes the well on release and reopens it on re-attachment, without killing the well

Tool sizes: 3⅞, 5 in Working pressure: 10,000 psi

NICE SUMMER Fracturing Valve

Casing-conveyed fracturing valve opened by rupture disc

Casing sizes: 5½ in casing Working pressure: 10,000, 15,000 psi

Leakage Control Valve

Downhole isolation valve that protects the reservoir during completion

Casing sizes: 9⅝ in casing Working pressure: 3,900 psi
